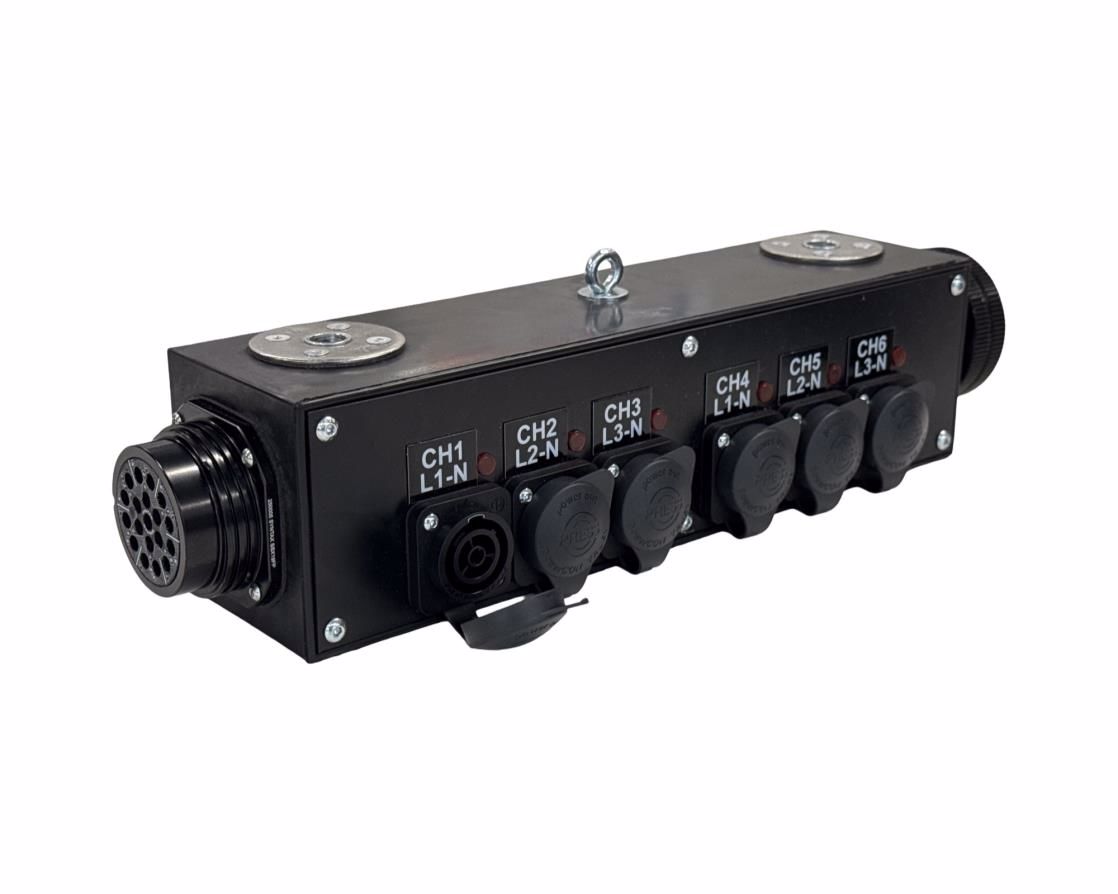

SYN-419-BREAK-OUT-BOX-TRUE1-IO

Break out box 419 in, 6 PowerCON TRUE1, 419 out

Box: enclosure in black solid rubber (insulated, GWT, IP54, IK10), transportable, dimensions W300 x D80 x H75mm.

Incoming: 1 Syntax SSX 19-pin IP67 panel male connector (black locking ring, silver-plated crimped ontacts).

Outgoing: 6 x powerCON TRUe1 TOP 16A 3p 230V IP65 appliance outlet with sealing cover IP65 (CH1 / CH6).

Loop: 1 Syntax SSX 19-pin IP67 panel female connector (silver-plated crimped contacts).

Installed accessories: 6 red leds, 2 x M10 stainless steel fittings and ring for safety cable (safety cable not included).

Technical data: MULTIPLIER / ADAPTER, Un 6 x 230V 1pH+N+PE, fn 50Hz, InA 6 x 16A, Max. power (OUT) 6 x 3.500W, RDF 50/100, IP44, Electrical insulation class I (first).

Manufacturer: Syntax
Availability: In stock
Cable crossover
Cable crossover
