LAP-5311.1240

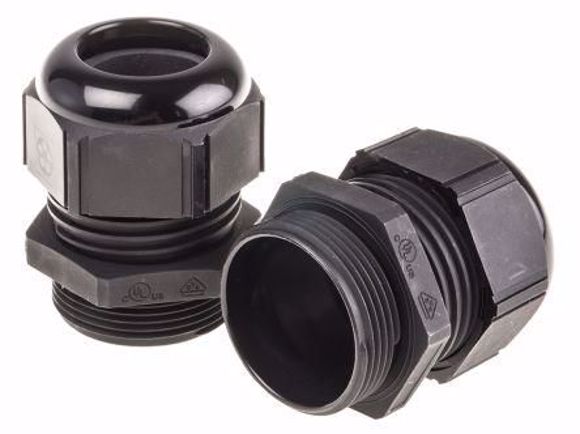

Black Plastic M32 from Lapp - Cable OD 11-21mm

SKINTOP ST-M 32x1,5 RAL 9005 BK



SKINTOP® ST-M, increased oil-resistant plastic cable gland with variable clamping ranges, permanent vibration protection, for offshore platforms

Article designation / size: M 32 x 1,5; Clamping range ØF mm: 9 - 21; SW wrench size mm: 36; Overall length C mm: 47.0; Thread length D mm: 10; Pieces / PU: 25; Cable gland system: Single entry system; Thread type: Metric; Product Group: Cable screw gland; Material quality: Polyamide; Colour: Black; Size: 32x1,5; Clamping range min.: 11; Clamping range ma.: 21; Temperature range max.: 100; Temperature range min.: -40; Degree of protection (IP): IP 68 - 5 bar; Approbation: CE / CULUS / VDE / cRUus / GGVS / DNV

Manufacturer: LAP
Availability: In stock
Products specifications
Material Plastic
Color Black
Products specifications
Material Plastic
Color Black
