CABLE/M

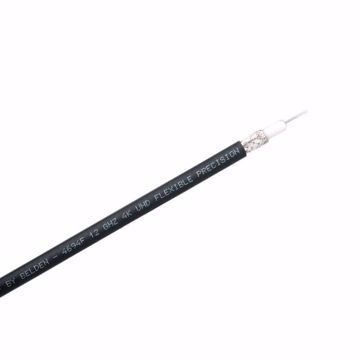

Coax cable 12G-SDI - BLACK - Semi-Flexible

- 12 GHz Coax
- 4K UHD Precision Flexible Video Cable
- RG-6/U Type
- 75 Ohm
- 18 AWG solid .040" silver plated copper conductor
- Gas-injected foam HDPE insulation
- dual tinned copper braid shield (95% coverage each)
- CM
- PVC jacket

Declaration of Conformity

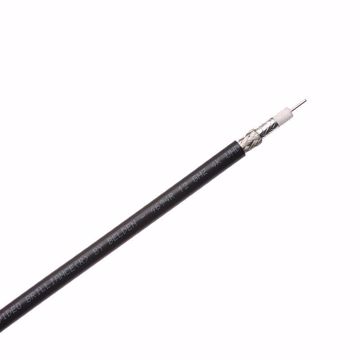

Coax cable 12G-SDI - BLACK

12 GHz Coax
4K UHD Precision Video Cable
RG-6/U Type
75 Ohm
18 AWG solid .040" silver plated copper conductor
gas-injected foam HDPE insulation
Duofoil® bonded to core + tinned copper braid shield (95% coverage)
CMR
PVC jacket

Declaration of Conformity

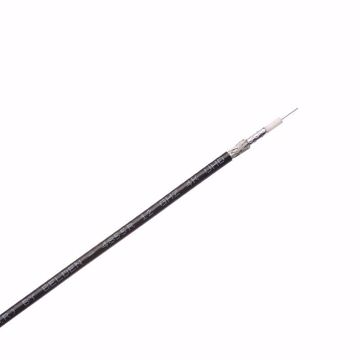

Coax cable 12G-SDI - BLACK - RG-59 Mini

- 12 GHz Coax, 4K UHD Precision Video Cable, RG-59 Mini
- 75 Ohm
- 23 AWG solid .023" silver plated copper conductor
- Gas-injected foam HDPE insulation
- Duofoil® bonded to the core + tinned copper braid shield (95% coverage)
- PVC jacket

Declaration of Conformity

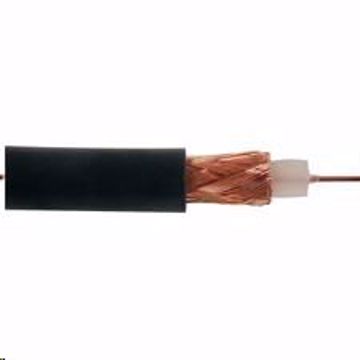

Video cable COAX RG59 FLEX - BLACK

22 AWG stranded (7x30) .030" bare copper conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

Declaration of Conformity

Antenna Cable RG213 - BLACK

Belden RG213/U Coaxial Cable

The Belden RG213/U coaxial cable by has an outer diameter of 10.3 mm and a reel length of 100 m. This Coax cable has a capacitance of 101 pF/m, a velocity ratio of 66%.

Features and Benefits

• A coaxial communication cable, great for communicating!
• Black polyvinyl chloride (PVC) outer sheath
• Bare inner conductor with PE Insulation
• Impedance of 50 Ohm

Typical Applications

• Low and high power RF connections

Bedlden Antenna Cable RG58 C/U - BLACK
