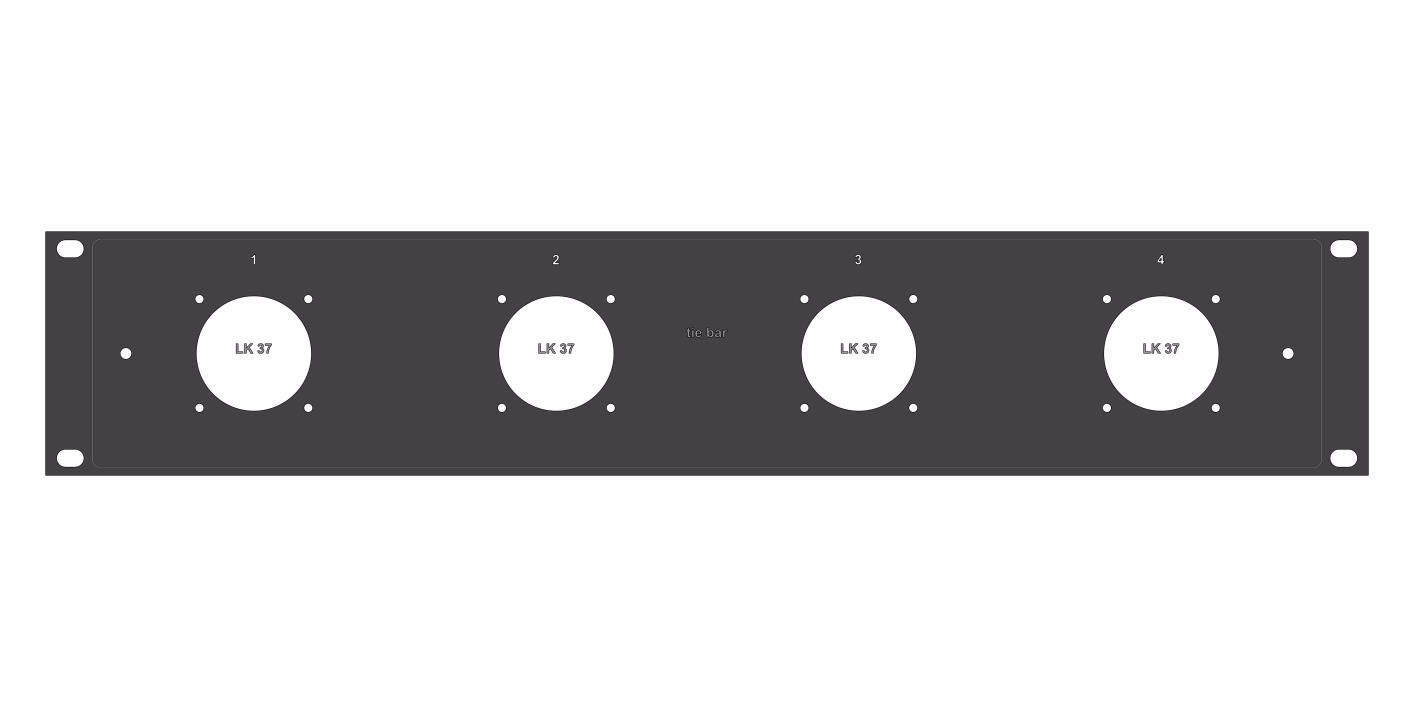

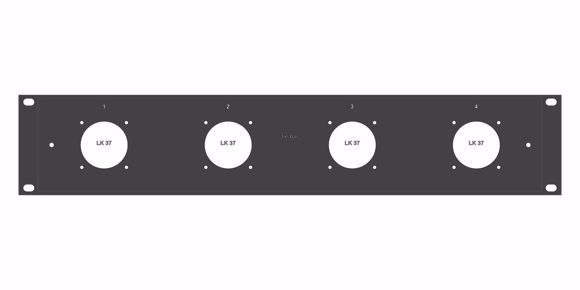

AXE-PANEL-2U/4LK37/L/T

Universal empty Axept panel - 2 unit / 4x LK37 / lasered / Tie-bar (NO CONNECTORS)

Availability: Out of stock (On request)
Customers who bought this item also bought

SOM-200-0401

Patch cable SC-Isopod SO-F22; 2 x 0,22 mm²; PVC Ø 3,30 mm; black

Technical Data: - Properties: Analog - Properties: OFC oxygen free copper - Application area: Installation - Application: Patch cable - Colour: black - Colour detailed: black - Signal transmission: symmetrical - Jacket material: PVC - Jacket Ø: 3,3 mm - Number of Channels (audio): 1 - Inner conductor (audio): 2 - Inner conductor (audio): 0,22 mm² - Inner conductor Ø (audio): 0,53 mm - AWG (audio): 24 - Shielding: AL / PT foil + AL / PT foil + filler strand, tin-plated - Copper strands (audio): 7 - Copper strand Ø (audio): 0,20 mm - Conductor insulation material: PE - Conductor insulation Ø: 1,12 mm - Weight per 1 m: 16 g - UV-resistant: yes - Fire load per m: 0,05 kWh - Style variant: round - Shielding factor: 100 % - Packing: 200 m spool - Temperature min.: -25 °C - Temperature max.: 70 °C - Width: 3,3 mm - Height: 3,3 mm - Capac. cond./cond. per 1 m (audio): 74 pF - Capac. cond./shield. per 1 m (audio): 143 pF - Insulation resist. per 1 km: 0,2 GΩ - Insulation resist. per 1 km (audio): 0,2 GΩ - Conductor resistance per 1 km: 88 Ω - Shield. resistance per 1 km: 75 Ω Only available on full 200m lenghts

NEU-NC3MXX

Cable Male 3P, Nickel body, silver contacts

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits
Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well protected against any damage
Branded with unique hologram - guarantees genuine and authentic Neutrik product

Declaration of Conformity

LAP-5311.1240

Black Plastic M32 from Lapp - Cable OD 11-21mm

SKINTOP ST-M 32x1,5 RAL 9005 BK



SKINTOP® ST-M, increased oil-resistant plastic cable gland with variable clamping ranges, permanent vibration protection, for offshore platforms

Article designation / size: M 32 x 1,5; Clamping range ØF mm: 9 - 21; SW wrench size mm: 36; Overall length C mm: 47.0; Thread length D mm: 10; Pieces / PU: 25; Cable gland system: Single entry system; Thread type: Metric; Product Group: Cable screw gland; Material quality: Polyamide; Colour: Black; Size: 32x1,5; Clamping range min.: 11; Clamping range ma.: 21; Temperature range max.: 100; Temperature range min.: -40; Degree of protection (IP): IP 68 - 5 bar; Approbation: CE / CULUS / VDE / cRUus / GGVS / DNV

LAP-5311.9040

Grey Plastic locknut for M32

SKINTOP GMP-GL-M 32x1,5 RAL 7001 SGY



SKINTOP® GMP-GL-M, glass fibre-reinforced counter nuts, for maximum mechanical stability, for locking in boreholes without thread

Article designation / size: M 32 x 1,5; SW wrench size mm: 41; Pieces / PU: 100; Cable gland system: Single entry system; Thread type: Metric; Product Group: Cable screw gland; Material quality: Polyamide; Properties: Glass-fibre reinforced; Colour: Grey; Size: 32x1,5; Temperature range max.: 100; Temperature range min.: -40; Approbation: CE / cRUus
