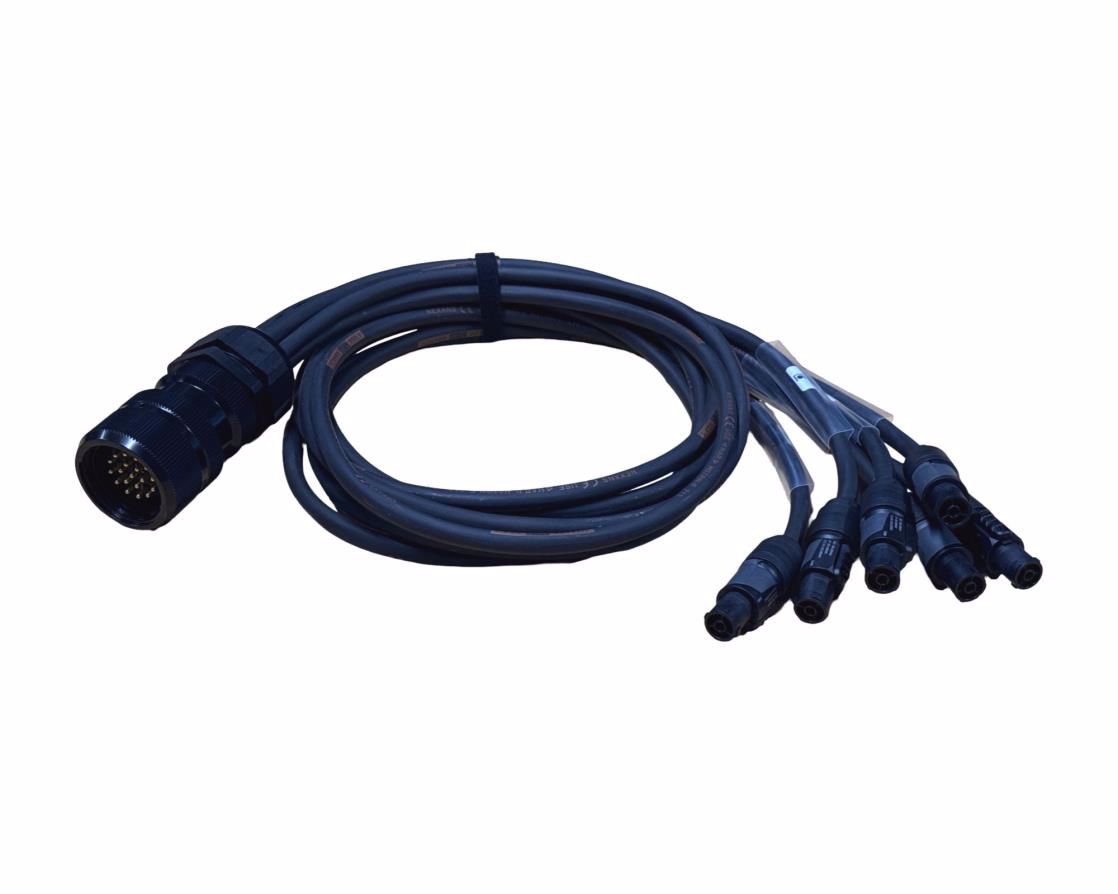

AXE-419-BREAK-OUT-TRUE1

DATA CABLE 2 x CAT6A U/FTP (10 GIGABIT ETHERNET CLASS EA) + POWER (JACKETED) 3x2.5mm² - OD: 21,0mm

Technical data - Network

Core: 2

Conductor: Nr.4 x Twisted Pairs x 0,25 mm² / 23 AWG (1 x 0,57 mm) Oxygen free Copper

Drain Wire: - (1 x 0,40 mm) Tinned Oxygen free Copper (OFC)

Insulation Wires: Ø 1,25 mm TIA/EIA 568 A-B Skin FPE

Sheath: Ø 8,0 mm Matte Black PVC

Shield: Alu-Polyester Foil ,100% Coverage

DC Loop R Cond : 145 Ω/Km

DCR Shield: N.D.

Capacitance C/C: 45 nF/Km

Impedance (Z0): 100 ?

NPV: 76%

Standard: ISO/IEC 11801

Matching Plug: RJ45(cat6)

Technical data - Energy

Conductor: Nr.3 x 2,5 mm² / 14 AWG (Class 5 - Stranded Cable) Copper

Insulation Wires: Ø 3,57 mm Y/G, Blue, Brown PVC

Sheath: Ø 11,3 mm Matte Black PVC

DC Loop R Cond : IEC_60344

Standard: IEC_60228 - Class 5

Titanex H-07RN-F 3G2,5mm²/m - Outside diameter: 14mm

The TITANEX® flexible rubber cable range offers exceptional performances and is designed to release you from all your constraints. Robust yet flexible, TITANEX® is easy to use and withstands the toughest of conditions, such as hard-wearing situations, extreme temperatures and most chemicals. For more than 50 years the TITANEX® cable range properties have been recognized as the best choice for all mobile and fixed installations in industrial environments such as construction sites, cranes, machines tools, factories, generators etc.

TITANEX® is also suitable for public environments and temporary events such as festivals or sports competitions, where the cable is often laid directly on the ground with no protection.



The cable may be rated 0,6/1 kV where the installation has built-in protection and for motors in lifting appliances - machine tools - etc.

When pick up at Willebroek, reels of 500 meters are possible, when you select transport, only 100 meter lengths will be sended.

Panel 5 pole Female, Black housing, silver contacts, D-size

5 pole female receptacle, solder cups, black metal housing, silver contacts The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. Features & Benefits •All metal housing offers best overall RF protection and electromagnetic shielding •Duplex ground contact for excellent contact integrity between chassis and cable connector •Female contact incorporates a solder barrier to prevent solder running into the contact mating area •Larger solder contacts for easier termination •Optional connection to easily join pin1 to chassis ground •D-style housing provides installation compatibility with industry standard D mounting dimensions

Axept CAT6S/FTP cable black

• S/FTP Cat.6 4x2xAWG 27 LSHZ
• Outer diameter 6,2mm
• Flame retardant acc. to IEC-60332-1
• Length imprinted on strain relief
• Contacts gold-plated

Connector: RJ45 plug shielded and gold plated contacts
Boot: PVC 75A / Length imprinted
Cable: S/FTP Cat.6 4x2xAWG27 LSZH
Outer diamete: r 6.2mm
Bending radius: 5 x outer diameter
Jacket: Flame retardant acc. to IEC 60332-1
Printing: Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 & EN50173-1 TIA/EIA 568.2-1
Halogen Free ***Gigabit***
general temperature range 0° up to + 60°C
withstand voltage 500V DC
